Laboratory Oven

Available Volume

(N )Natural convection (F )forced convection
  • LO-35
  • LO-60N, LO-60F
  • LO-120N, LO-120F
  • LO-360N, LO-360F
  • LO-520N, LO-520F
  • LO-820N, LO-820F
  • LO-1015N, LO-1015F
  • LO-custom

    • Description

    Laboratory Ovens are manufactured using high grade material to allow various heating applications. The precision made laboratory oven meets all heating requirements ranging from 50°C to 300°C.

    The laboratory oven is made with mild steel material with anti-corrosion treatment in duly powered coated finish to provide sufficient support in various applications.
    The inner chamber made up of stainless steel material and consist of perforated trays allows excellent function.
    The space between the inner chamber and outer chamber is filled with 50mm high density grade mineral wool to keep the temperature stagnant within the optimum range required during application.
    The electronic board have mechanical relay used for pre-heating and static relay used for precision temperature regulation.

    We also provided customization of ovens as per client’s specification to meet the desired need.

    Available model:

  • Natural Convection ovens rely on temperature differences within the oven to transfer heat to samples. They are used for drying applications requiring a gentle airflow in baking, conditioning, curing, pre-heating, and aging. Natural convection ovens are ideal for sterilization, drying, and thermal storage tasks that do not require high drying rates or special time parameters.

  • Forced Convection ovens are built with a fan inside the wall of the oven which forces the hot air in the oven to circulate throughout it. The forced air circulation system provides both exceptional temperature uniformity and rapid heat recovery. They usually operate at temperatures in a range from ambient to a maximum of between 200 and 300 degrees Celsius. Forced-air laboratory ovens are often used in procedures involving cultures and samples when accurately controlled uniform heating is required.

    • PRODUCT INFO

    Laboratory Oven

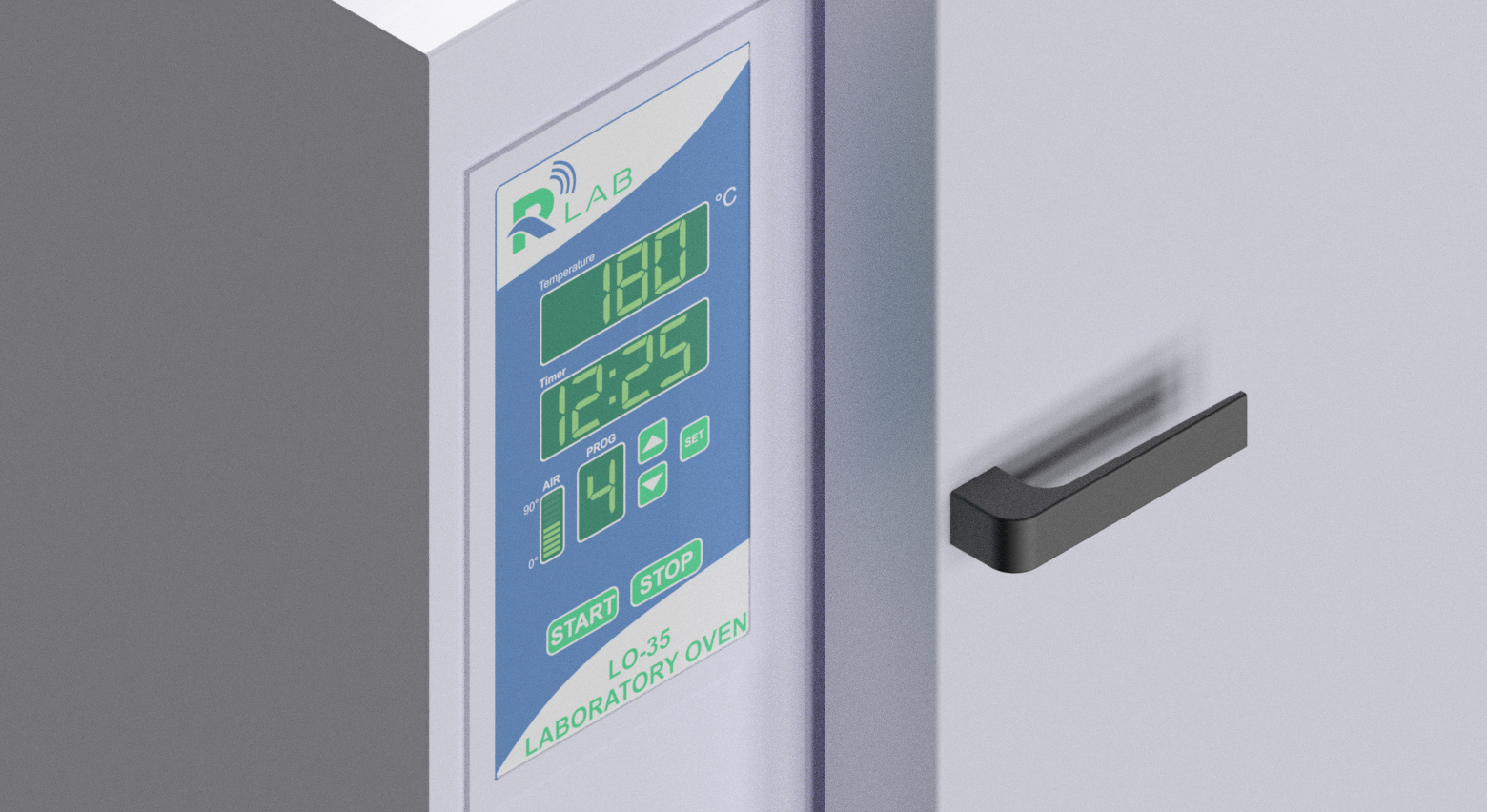

  • PID controller with Auto-tuning provides accurate temperature regulation.
  • Temperature range 50°C - 300°C .
  • Temperature uniformity natural convection: ±5.0 @ 250°C.
  • Temperature uniformity forced air convection: ±2.0 @ 250°C.
  • Temperature Stability: ±2.0°C.
  • Temperature Accuracy:±3.0°C (can be customized)
  • Temperature Sensor PT100 class A.
  • Thermal isolation Rock-wool 50mm high density.
  • Inner chamber - Stainless Steel.
  • Case mild steel with anti-corrosion treatment and epoxy paint.
  • Over temperature protection.
  • Sensor failed detection.
  • Output stage failed detection.
  • Connection for air outlet with valve, electronic adjustment.
    • Reservoir Capacity (L) 35
    Dimension
    Internal dimensions (L x W x D mm) 450 x 320 x 250
    Overall Dimensions (L x W x D mm) 650 x 420 x 320
    Application Feature
    Power（W） 1200
    Power Requirement AC 220V/50Hz/60Hz
    Net weight (Kg) 45

    Hole platform order REF: LS-#2001

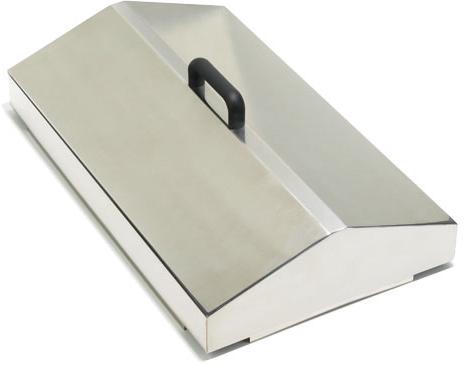

    Stainless steel lid with plastic handle REF: LS-#2002

    Thermometer clamp order REF: LS-#2004
